GROHE RAPIDO DUSCHRA M MONO G15

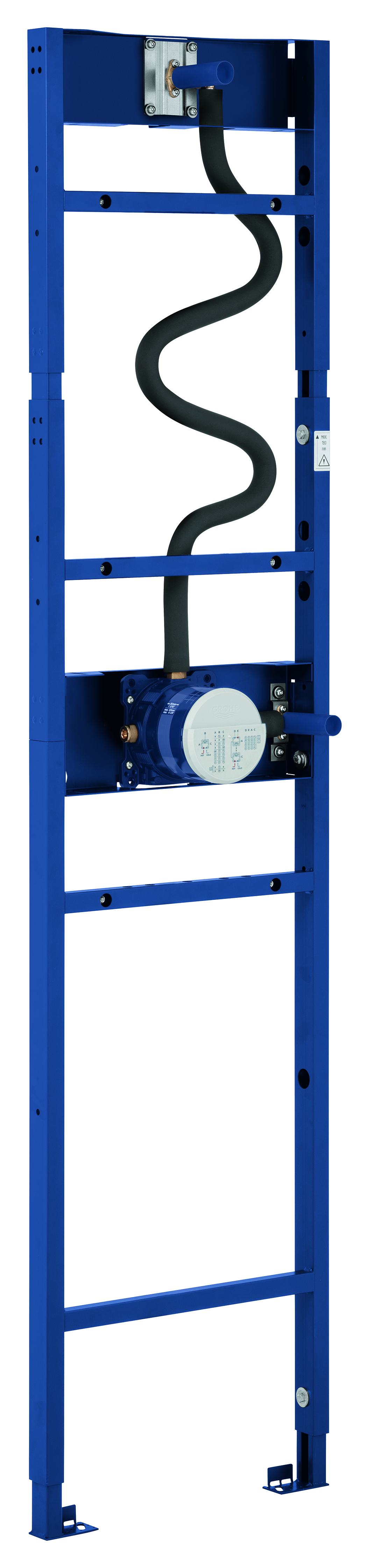

Rapido Shower Frame, Element for mono concealed shower installation, for shower installations with one hand shower and a Mono head shower
pre-mounted rough-in set GROHE Rapido SmartBox (35 604)
pre-mounted wall outlets for hand and head shower
pre-mounted and insulated mixed water pipes
for on-the-wall installations or dry-cladding
Stålramar, pulverlackerade, självbärande
completely pre-assembled
Justerbart djup för avloppet
2 utlopp nedåt, 1/2"
min. installation depth (from rough wall to end finish) 77-107 mm
min. installation depth (from rough wall to frame front) 67 mm
head shower outlet height adjustable by 180 mm
sealing fleeces
leak test done ex factory
suitable for concealed 2-function trim sets in combination with GROHE Rapido SmartBox
suitable for GROHE shower outlet elbows with male connection threads, 1/2"
suitable for GROHE shower arms with male connection threads, 1/2"
perfect fit with Grohtherm concealed shower systems 103 995 0000 and 103 996 0000
for on-the-wall installation please order wall brackets 103 999 9990 (sold separately)
Professionell version
